Dry Slope Drain Fleece
Dry Slope Drain Fleece
For tubing facilities and dry ski slope areas, a major problem is the removal of rain and melt water. Our new development "Dry Slope Drain Fleece" is a hollow nap drainage element and has a friction-enhancing spin spray application on the underside.
On earth materials and other substrates, the product remains in place even in slope areas without additional fastening and ensures the removal of water and microplastic through small channels.
Dry Slope Drain Fleece
Fleece to cover larger areas
As a base for large dry ski slopes or in combination with TubTrax M2

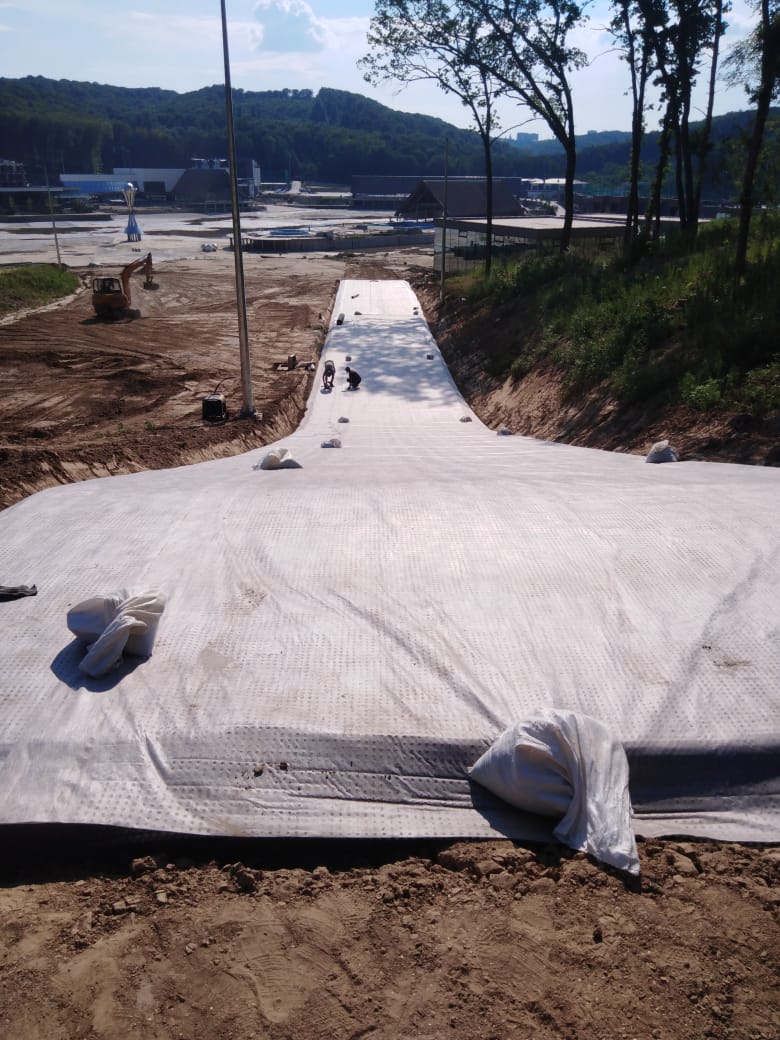

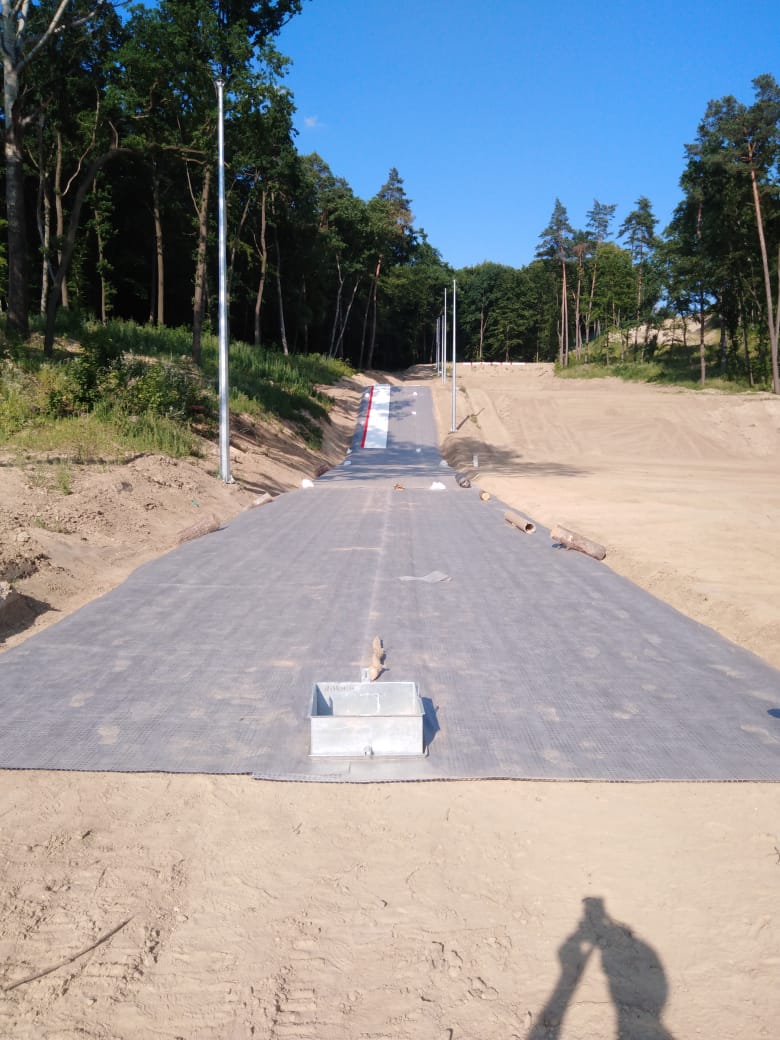

we have developed a new type of drainage fleece. The Skitrax "Dry Slope Drain Fleece" (DSDF) is a hollow pimple drainage element and has a friction-increasing spin spray coating on the underside. On soil and other substrates, the product stays on embankments without additional fastening up to an incline of approx. 1:3 (= approx. 18° or approx. 32%).
It can be supplied in rolls of 12.5m length and 2.44m width. A width of 4.88m width and 20m length is only possible for larger orders and cutting to size as required is also only possible for larger orders.

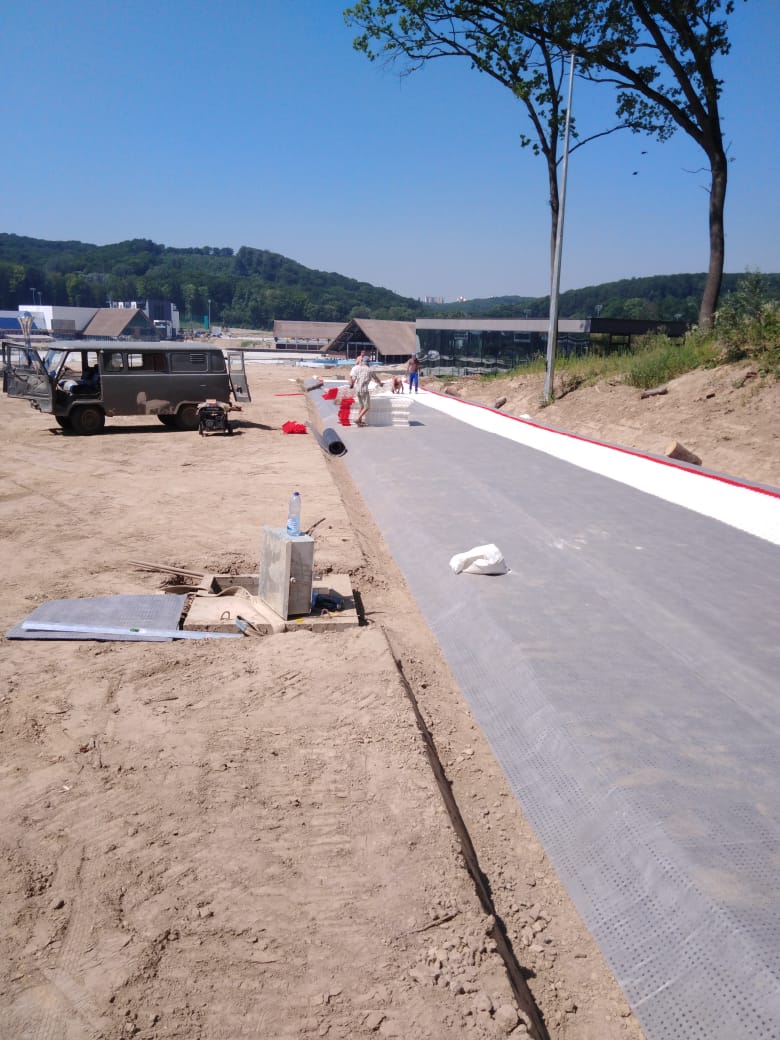

This fleece can then be connected with screws between the two metal side elements of the TUBTRAX 2. The result is a professional, stable tubing track with the highest level of cleanliness. The rainwater is drained downwards and, if necessary, to the side with the hollow knobs and thus protects against underwashing. Perfect pad for SlopeTrax (Matten ski areas), TubTrax
(tubing lanes) and KartTrax
(Ice-karting with slides and drifts).
The mats are attached to the DSDF on the ground with special twisted pegs that are practically installed in the ground with a drill. We also supply other nonwovens as required.
The mats are attached to the DSDF on the ground with special twisted pegs that are practically installed in the ground with a drill. We also supply other nonwovens as required.
Summary:
- Optimum drainage of water
- Self-adhesive material
- Supplied in large rolls
(max. 50m x 4.95m) - Can be designed independently
- Skitrax mats come to the DSDF
- Special twisted pegs fasten the system
UPDATE - Dry Slope Drain Fleece News

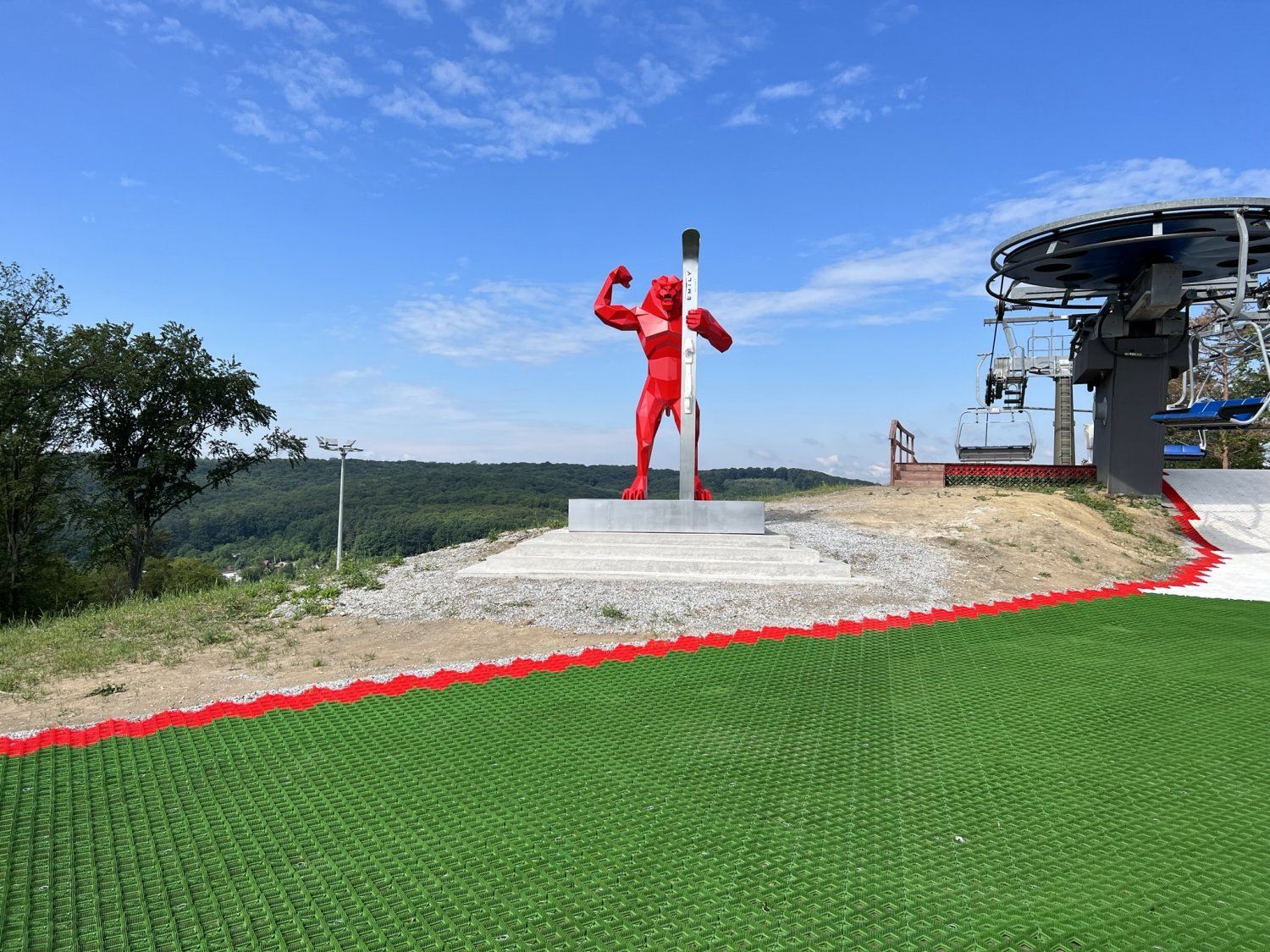

Hundreds of skiers are expected on the opening weekend. The 5-star Emily Sport Hotel in Lviv will open the summer season on the largest alpine dry ski slope in the world next weekend. After a successful second winter season with abundant snow, which began in December 2022 and ended at the end of March 2023, extensive revision work was carried out on the chairlift and snowmaking systems. In addition, the alpine Dry Ski Slope was cleaned by Skitrax World and prepared for the new summer ski season. First test runs on alpine skis and snowboards were successfully carried out.

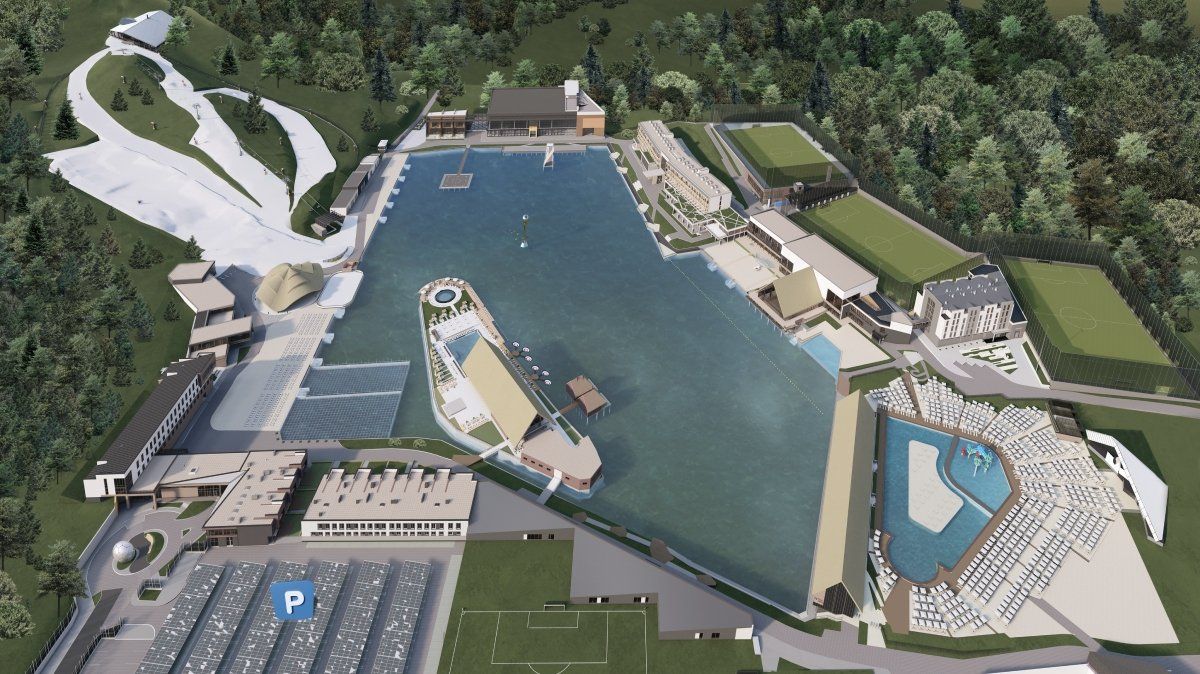

Sports complex "Hotel Emily Resort" opened. Since mid-June 2022, the new 5-star Hotel Resort Emily has been open near the major Ukrainian city of Lviv (Lviv). It is a quick drive on the newly built road from the city center to the small, picturesque Vynnyky mountain area 4 km away. From the airport it is only about 10 km. Around an artificially created lake a modern 5 star luxury hotel with 6 (!) restaurants, event and conference halls, many smaller rooms for meetings, a water park, island with beach, swimming pools with large SPA & sauna landscape and an amphitheater was created.

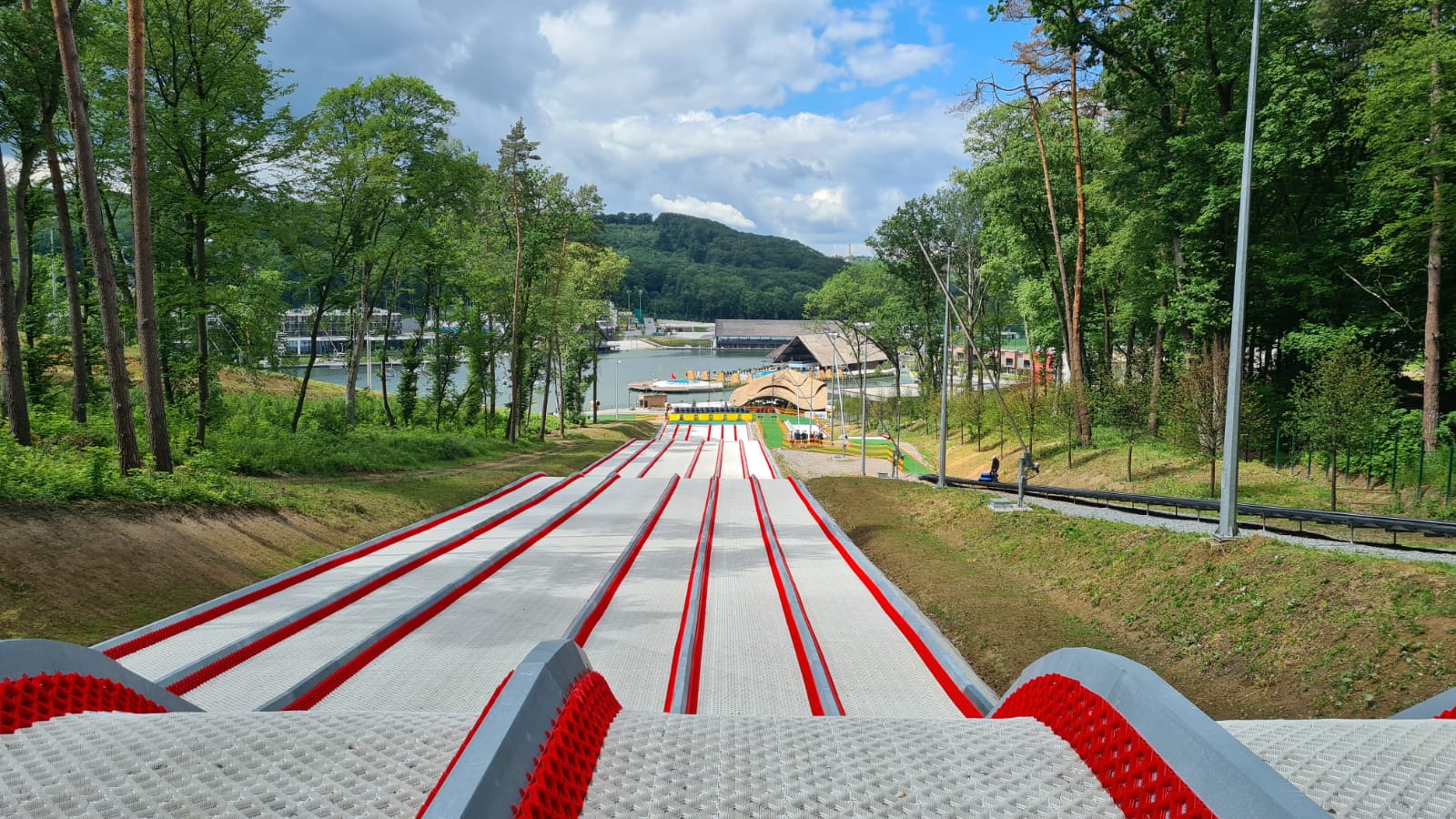

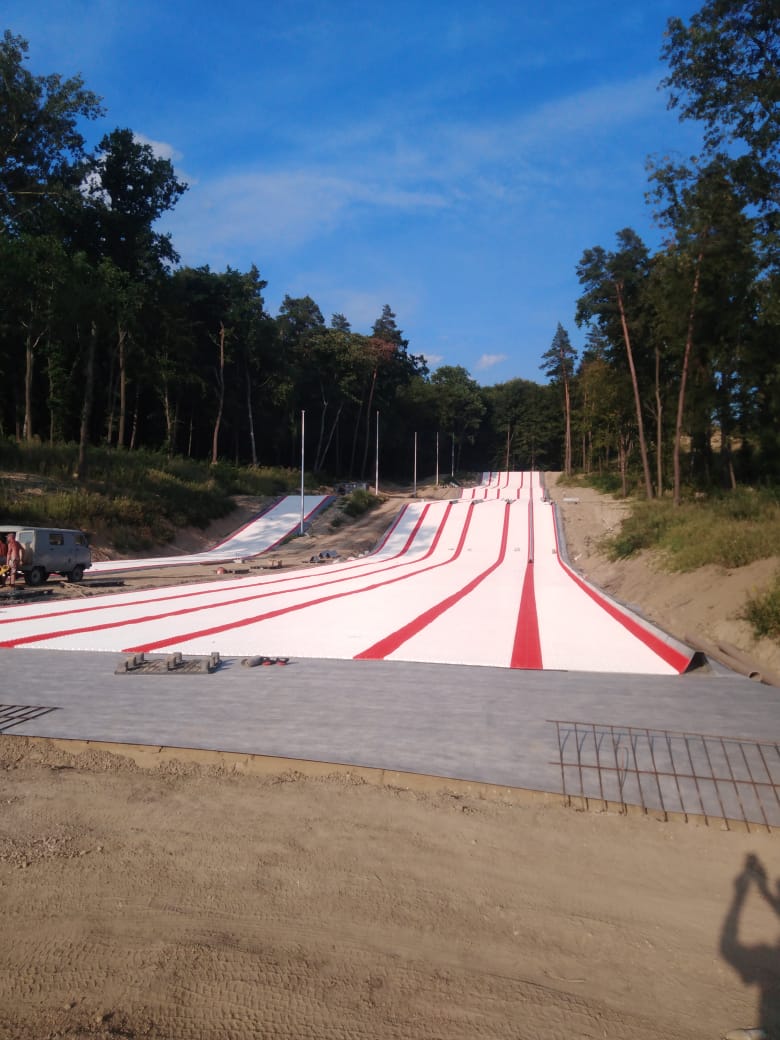

250m long tubing track with 7 lanes. In addition to the 6 lanes on the 250 long tubing track, there is another tubing track for children. Spectacular for a tubing track is the electronic Axess entrance area. People can buy a chip card with different lane rides in the service area and then elegantly enter the tubing lane through the entrance area. There, two comfortable conveyor belts await them. The first conveyor belt leads directly to the entrance for the children's tubing track. Here the kids shred down the tube through two curves with Tubtrax sliding mats into the valley.
Do you have questions about DSDF?
We would be happy to send you further information.
Let us know (if possible) exactly
- what is planned
- where is planned
- when to install.
Then we can also make a concrete offer.
Many Thanks.
